Z Value Table Reference

Introduction to Z Value Table Reference

The Z value table, also known as the standard normal distribution table or Z table, is a statistical table that provides the area under the standard normal curve to the left of a given Z score. This table is widely used in hypothesis testing and confidence interval construction in statistics. In this article, we will delve into the details of the Z value table, its application, and how to use it effectively.

Understanding the Z Value Table

The Z value table is based on the standard normal distribution, which has a mean of 0 and a standard deviation of 1. The table provides the probability (or area) to the left of a given Z score. The Z score is calculated using the formula: Z = (X - μ) / σ, where X is the value of interest, μ is the population mean, and σ is the population standard deviation.

For instance, if we want to find the probability that a random variable X is less than a certain value, we first calculate the Z score and then use the Z table to find the corresponding probability. The Z table is typically organized with Z scores ranging from -3.09 to 3.09, with increments of 0.01.

How to Use the Z Value Table

To use the Z value table, follow these steps: - Calculate the Z score using the given formula. - Locate the row corresponding to the first two decimal places of the Z score in the table. - Identify the column corresponding to the third decimal place of the Z score. - The intersection of the row and column gives the probability (or area) to the left of the Z score.

For example, if the Z score is 1.23, we would look at the row labeled 1.2 and the column labeled 0.03. The value at the intersection of this row and column is the probability we are looking for.

Interpretation of Z Scores

Z scores can be interpreted in terms of how many standard deviations away from the mean our value of interest is. A Z score of 0 means the value is equal to the mean. A positive Z score indicates that the value is above the mean, while a negative Z score indicates that the value is below the mean.

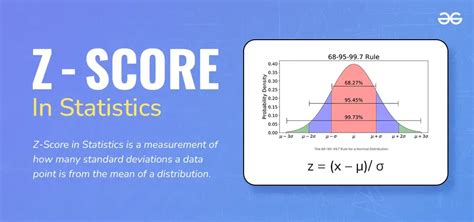

Here are key points to remember about Z scores: - A Z score of 1 means the value is 1 standard deviation above the mean. - A Z score of -1 means the value is 1 standard deviation below the mean. - About 68% of the data points fall within 1 standard deviation of the mean (between Z=-1 and Z=1). - About 95% of the data points fall within 2 standard deviations of the mean (between Z=-2 and Z=2). - About 99.7% of the data points fall within 3 standard deviations of the mean (between Z=-3 and Z=3).

Applications of the Z Value Table

The Z value table has numerous applications in statistics, including: - Hypothesis Testing: The Z table is used to determine the p-value, which helps in deciding whether to reject or fail to reject the null hypothesis. - Confidence Intervals: It is used to construct confidence intervals for population means when the population standard deviation is known. - Prediction Intervals: The Z table can be used to construct prediction intervals for future observations.

Example Usage

Let’s consider an example where we want to find the probability that a student scores less than 85 on a test, given that the test scores follow a normal distribution with a mean (μ) of 80 and a standard deviation (σ) of 5.

1. Calculate the Z score: Z = (85 - 80) / 5 = 1
2. Use the Z table to find the probability: Looking up a Z score of 1.00 in the table gives us a probability of approximately 0.8413. This means there is about an 84.13% chance that a student will score less than 85 on the test.

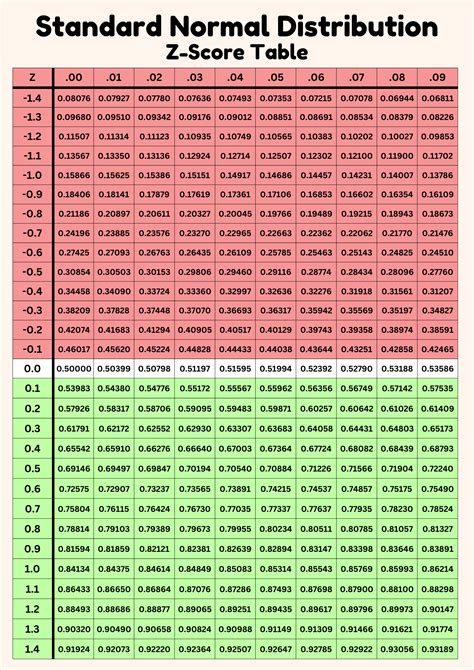

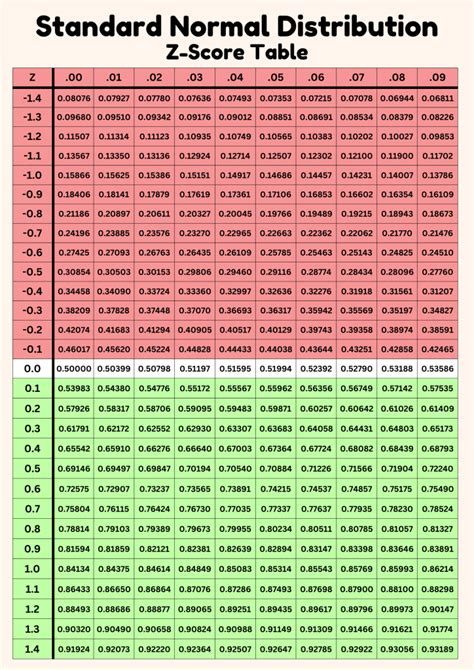

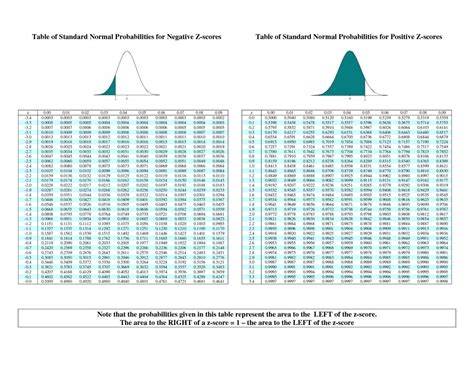

Z Score	Probability
-1.00	0.1587
0.00	0.5000
1.00	0.8413
2.00	0.9772

💡 Note: Always ensure that the Z score is calculated correctly before referring to the Z table, as the accuracy of the Z score directly affects the probability found in the table.

To summarize, the Z value table is a powerful tool in statistics, offering a way to calculate probabilities for a wide range of applications. By understanding how to use the Z table and interpret Z scores, one can perform complex statistical analyses with ease.

In wrapping up our discussion on the Z value table, we’ve covered its basics, how to use it, and its applications. This knowledge is foundational for more advanced statistical concepts and is widely used in fields such as business, medicine, and social sciences.
